Cellular Communication:

Cellular Communication- The face of communication is rapidly changing with the rapidly progressing of cell phone technology. So it is important to understand how a cellphone works. Cellphones are actually radios. They interface with the network, in a full-duplex system, to transmit and receive radio signals. Full-duplex means that there are separate channels sending and receiving information. So people can talk and listen to someone else simultaneously. This is in contrast to things, like walkie-talkies, that are half-duplex where you cannot hear the other person if you are talking. The network consists of low-powered radio antennas and transmitters arranged in cells.

Mobile communications variant we will study about cellular concept mobile phone system features of cellular concept such as frequency reuse and cell splitting handoff procedure and global system for mobile or GSM. When we have to call someone we just take out a mobile phone and dial the required number but has anyone ever wondered. How these mobile phones work what exactly happens when we make a call from our mobiles.



Cellular concept:

Cell:

A cell is a certain, geographic location that is served by a particular tower. If you are moving, your cellphone signal is transferred from cell to cell, depending on your location. In order to prevent you from losing the call. All of these cells are connected to a mobile switching center. Signals are passed from the phone, through the antenna, and sent through the switching center where they will either be passed to another cell or converted to a signal that can be sent along traditional telephone lines. The entire, complicated process only takes a second to complete. Maintaining the system is very important to keeping the lines of communication open.

Every city is divided into small areas each area is called as a cell thus a cell is defined as a basic geographical unit of a cellular communication system seriously pay attention this is important as the city is geographically divided into small cells. It is mandatory that all cells must be symmetrical in shape based on this.

Cellular Communication

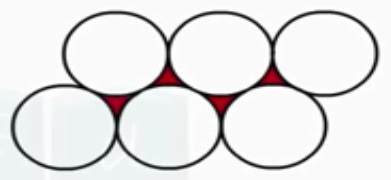

We have four geometrical shapes such as Circle Square equilateral triangle and hexagon. If we select the shape of a cell as a circle then the area between the two circles will not get covered by the base station and any attempt of communication from that area will fail. Thus we eliminate the circular shape.

Cellular Communication

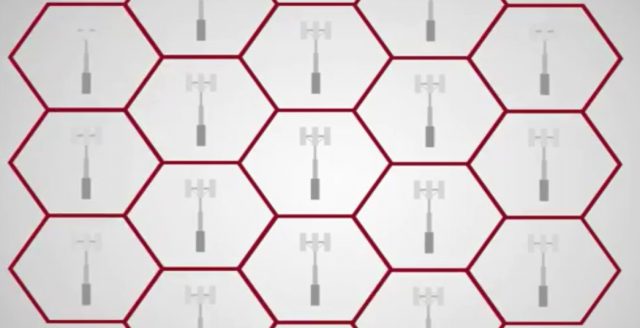

Hexagon has the highest area as compared to the other two shapes. Thus we divide the geographical area into hexagonal cells.




Cluster group:

The next concept is a cluster a group of cells is called as a cluster. The cluster size is not fixed. It depends on the requirements of the area.

Basic structure of mobile phone:

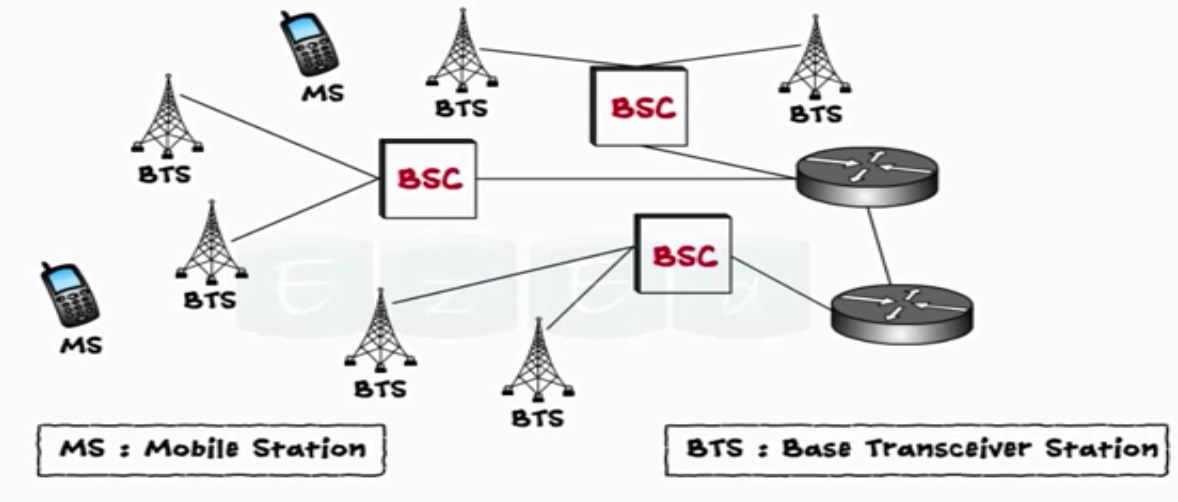

Let’s study the mobile phone system now the basic structure of the mobile phone system is as shown.

Cellular Communication

Where MS means mobile station BTS is base transceiver station. BSC is base station controller and MSC is mobile switching center. In this diagram MS is nothing but the mobile phone of a user.

Call from one mobile to another mobile:

Every cell has its own base transceiver station at its center. Whenever a call is set up the first signal is sent to the base transceiver station of the cell from this base transceiver station it goes to the central base station controller which controls the working of all the base stations from BSC it then goes to MSC or mobile switching center which is the master controller of the entire system. These MSC s are different for different areas from MSC of area one the signal is transmitted to MSC of area 2 where it follows the reverse sequence as MSC to BSC, BSC to BTS and from BTS – MS. Whenever a user makes an attempt to call someone a separate channel is assigned to the user by the MSC if all the channels are already occupied by other users then this user has to wait for a channel to become free in such a case the user gets the notification such as call cannot be completed or network error etc



Features of cellular concept:

Frequency reuse:

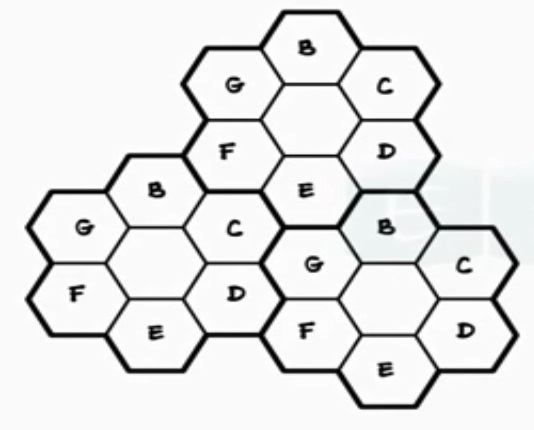

Now let’s see the features of the cellular concept its first feature is frequency reuse in frequency reuse same set of frequencies are used for radio channels located in different areas as shown in the diagram below.

Cellular Communication

Every cell named as a uses the same set of frequencies the advantages of frequency reuse are many transmitters of small output power operating at the same frequency can be used. It reduces the minimum height of the transmitting antenna as each antenna has to cover a small distance but the disadvantage is that if the system is not properly designed then it may lead to co-channel interference. Co-channel interference is a phenomenon in which two frequency signals of adjacent channels interfere with each other.

Cell splitting:

The second feature of the cellular concept is cell splitting. In cell splitting technique each cell is divided into smaller cells known as micro cells. The radius of these small cells is half of the original radius. Cell splitting technique proves advantages when the traffic of cell phone users increases beyond the limit of a regular cell.



Handoff:

Let’s see what do we mean by a handoff procedure consider a situation where we are traveling from place A to place B via a car. Sometimes it happens that for a short period of 2 or 3 seconds the signal strength on mobiles becomes very low and again it increases and reaches its normal level. Have you ever thought why this happens? The answer to this question is the handoff procedure when someone user X travels in area A he receives the signal from base station that is antenna a has a stronghold on out devices signal but as he moves away from antenna a the signal strength gradually decreases at a boundary of cell a the whole of antenna a on the device is minimum at the same time when the device is about to enter into cell B base station B starts to take hold on the device thus at the border of cell a and cell B. Both the antennas have equal amount of hold on the device of user X as user X crosses the border and enters into cell be area B strength of base station. A very rapidly decreases and strength of base station B rapidly increases in short the device receives the signal network from base station B. But during this procedure the call is still on. Hence base station a handovers this call to base station B without any effect on a call this procedure is known as the handoff procedure. This process happens so rapidly that the user never notices it.

We all know that there are two types of systems available as GSM and CDMA. We will only study the basics of GSM system GSM stands for global system for mobile GSM is nothing but a big system made up of few small systems. Such as mobile stations MS base station subsystem, BSS network and switching subsystem NSS operating subsystems OSS. The architecture of this GSM network is as shown mobile station MS nothing but the device used for communication. Such as cell phone fax machine etc base station subsystem BSS. BSS gets connected to ms wire radio interface. it has two different blocks as BTS base transceiver system and BSC base station controller practically. Every MS gets connected to BTS of that area this beauty s sends the signal to BSC many BTS are connected to one BSC and at the end of this BSC is connected to MSC. Hence BSS system consists of BTS and BSC network and switching subsystem NSS. This system mainly contains MSC. MSC is the backbone of the entire network it controls all the operations from setting up a call till the handoff procedure other blocks of NSS are h l our home location register which keeps the database of all the users who reside in the same geographical area VL our visitor location register keeps the track of all the users who are visitors for that particular geographical area mainly roaming customers  authentication center mainly controls. The authentication of the users by checking their sim numbers etc and sends the required information to the MSC.



SIM:

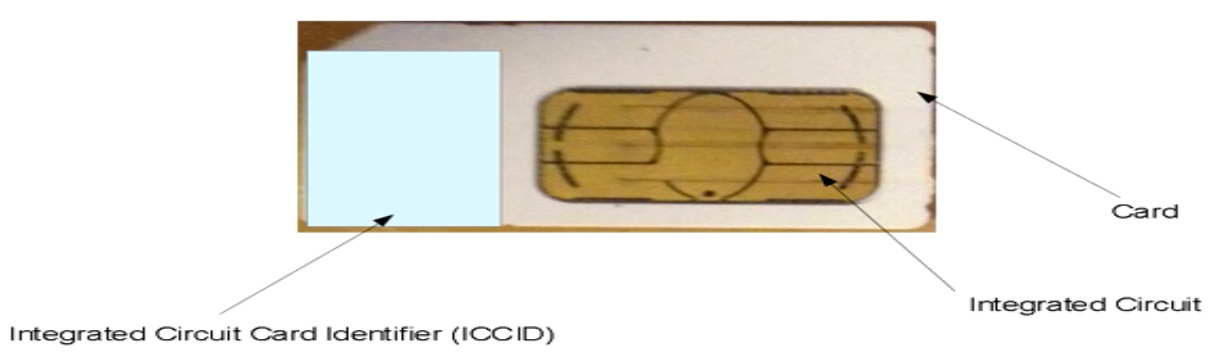

what does a SIM card actually do we all know a mobile would not work without one but why let’s start by looking at what SIM actually stands for it stands for subscriber identity module. So fundamentally it identifies your phone so when you send a message. Your phone knows which network to use and your operator knows who to bail for it though SIM contains more information. It contains of course your number the information needed to bill you for a lot SIM. The SIM obviously knows the unlock pin though you can’t get it out even if you use scissors and it typically has contacts and messages saves on its memory because of this you can easily move the SIM between phones and keep your number. A simple way to think about it is that once you insert a SIM card the phone becomes your phone. The carrier extracts the information from a number this number is written on the SIM card.

Cellular Communication

It is called the integrated circuit card identifier the shiny bit is an integrated circuit basically just a bunch of transistors and this is mounted on a card. It is a pointless name really but Telkom people seem to love the raku names anyway the number is made up of an issuer identification number and IIN more acronyms starting with an industry identifier which is almost always 89 have a look at your SIM card it probably starts with 89 then the country code, 44 for United Kingdom then we have the individual account identification number that is unique to you and finally we have a check digit that ensures that the previous numbers are correct. So it checks for any miss prints or errors and this is done using a clever algorithm developed IBM which is Lunz checksum. Finally let’s look at something the very few people know about there are two main ways of managing a network GSM and CDMA. GSM is a global system for mobile that requires a SIM and is used by almost everyone but you also have the entirely valid code division multiple access system which does not require a SIM how is this possible it’s quite complicated but basically what is going on is the phone has a serial number and the carriers have a list of the phone’s if your phone is on the list you can use the network.
