Chipsets

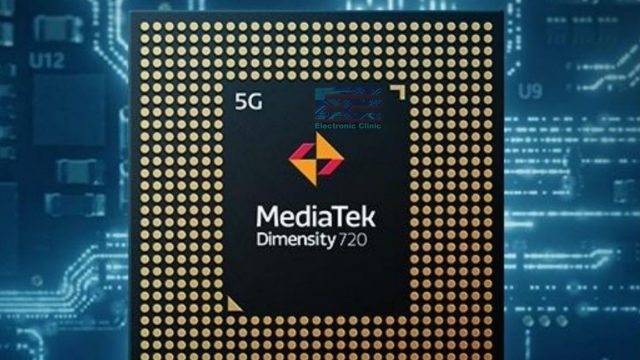

MediaTek Dimensity 720 Complete review with benchmarks

Description:

In today’s article, I am going to review MediaTek Dimensity 720. I’m going to review its AnTuTu 9, CPU, Graphics, Memory, Multimedia, Connectivity, and gaming experience.

MediaTek Dimensity 720


Amazon Links:

Top smartphones

Cell Phone Chargers

Air buds

Smartphones Accessories

Apple Iphones

Samsung Phones

Tablets

Ipods

*Please Note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!

MediaTek Dimensity 720:

Over the last few years, MediaTek is leading in the mobiles chip market, but in 2020 the company has gone so far with record-breaking new chipsets. Ee’ve seen some amazing chipsets like MediaTek Dimensity 1100, MediaTek Dimensity 9000 which tops the AnTuTu 9 benchmarks, and MediaTek Dimensity 1200 which was launched in XIAOMI 11T and many more smartphones. Now that we have the full specs and full complete details of the MediaTek Dimensity 720, let’s start off with the benchmarks.



AnTuTu 9:

CPU 99354
GPU 84632
Memory 62616
UX 99156
Total score 344254

MediaTek Dimensity 720 shows the best AnTuTu 9 scores. We can see the big jump in the GPU performance. The total performance of the GPU is 84632, which is slower than the Snapdragon 732G. The CPU also shows one of the best scores. It is 99354 which is a bit slower than the Snapdragon 732G. The memory scores also show a significant boost. Dimensity 720 memory is faster than MediaTek Helio G85, MediaTek Helio G90. The Ux is also showing one of the best performances. It is 99156, which is faster than MediaTek Helio G85, MediaTek Helio G90. MediaTek Dimensity 720 total scores are above 344254. It will depend on which smartphones manufacturers using this chipset with which type of ram. Dimensity 720 is considerably gaining a performance boost and beating every processor in the Mid-rand category.

Geekbench 5:

Single-Core Score 523



Multi-Core Score



1701

The single-core scores show the best performance in this smartphone mid-range category lineup. The single-core scores are 560. And the multi-core scores are 1724 which is also good at this point.


CPU:

Architecture 2x 2.0 GHz – Cortex-A76
6x 2 GHz – Cortex-A55
Cores 8
Frequency 2000 MHz
Instruction set ARMv8.2-A
Process 7 nanometers
TDP 10 W

MediaTek Dimensity 720 lunched with the Big 2 cores of Cortex-A76 which are ultra-high performance cores that are clocked on 2.0 GHz. The other 6 cores are based on Cortex-A55 which is a power efficiency core. There is a little disappointment that why they haven’t used the Cortex X1 or X2. But the Cortex-A76 also has the best speeds and good set instruction architecture. There are a total of 8 cores with a boost clock of 2.0 GHz. MediaTek Dimensity 720 has the latest set instruction architecture. It’s not fast but it is strong enough to beat some of the latest and most powerful Chipsets. Dimensity 720 is fabricated on 7Nm. This means MediaTek Dimensity 720 will be power efficient and will consume less battery and will produce less heat. The TDP shows 10wats which uses more power. This means it will consume more battery and will produce heat.

Graphics:



GPU name Mali-G57 MC3
Architecture Valhall
GPU frequency 850 MHz
Execution units 2
Shading units 32
FLOPS 243 Gigaflops
Vulkan version 1.1
OpenCL version 2.0
DirectX version 12

MediaTek Dimensity 720 has a new architecture-based GPU. Valhall is the new architecture that they are using in the Dimensity 720. The GPU is also manufactured using the 7Nm technology. Which means it will also be power efficient. The name of the GPU is Mali-G57 MC3. This is the fastest GPU in this lineup. The Dimensity 720 is fast enough to handle games like FREE FIRE and PUBG MOBILE. The GPU score is faster than the MediaTek Dimensity 720 which means there will be a smooth gaming experience on this chipset. The GPU is clocked on 850MHz. The shading units are also 32 which will help in rendering the graphics in gaming. There is also DirectX support of 12 which means this processor will support the latest games without any bugs and delays.


Memory:

Memory type LPDDR4X
Memory frequency 2133 MHz
Bus 2x 16 Bit
Max bandwidth 17.07 Gbit/s
Max size 12 GB

MediaTek Dimensity 720 uses the new LPDDR4x ram with the memory frequency of 2133MHz and uses the bus of 2×16. The ram may be changed according to the smartphone manufacturers, like XIAOMI, REALME, VIVO, etc. The memory frequency is also going to be changed according to the smartphone manufacturers. The max memory bandwidth is 17.07Gbit/s which is also faster than the Qualcomm Snapdragon 655 which was used in Realme 5i. the max memory support is 12GB.

Support:

Neural processor (NPU) Yes
Storage type UFS 2.2
Max display resolution 2520 x 1080
Max camera resolution 1x 64MP, 2x 20MP
Video capture 4K at 30FPS
Video playback 4K at 30FPS

MediaTek Dimensity 720 uses its own neural engine which is fast with the AI calculations and it can be used to accelerate video analysis, voice recognition, and image processing. MediaTek Dimensity 720 uses the UFS 2.0 which is fast. This gives you fast read and writing speeds.

MediaTek Dimensity 720 has the maximum display support of FullHD+ and can support the 120hz refresh rate with the super Amoled. Dimensity 720 is going to be very aggressive when it comes to camera support. It supports a camera up to 64MP. The video capture is kept on 4k at 30FPS and the video playback is also 4k at 30FPS. There is no 4k 60FPS support on this MediaTek Dimensity 720. It is a bit odd to see no 4k 60FPS support on a 2021 mid-range Chipset.


Connectivity:

5G support Yes
Wi-Fi 5
Bluetooth 5.1

MediaTek Dimensity 720 has 5G support. The MediaTek Dimensity 720 also comes with wi-fi 6 and the Bluetooth version of 5.1. This will give you better signals and better speeds. MediaTek Dimensity 720 uses its own 5G modem. It is not fast as the X65 but it gives you good speeds.

Smartphones

Phones with Dimensity 720 AnTuTu v9
1. Oppo Realme V5 347132
2. Huawei Nova 8 SE 339163
3. Oppo Realme V3 335314
4. Samsung Galaxy M32 5G 299961
5. Samsung Galaxy A32 5G 252180

MediaTek Dimensity 720 is launched in these 10 smartphones. As you can see these 10 smartphone scores are different. Oppo Realme V5 is at the top. Which is a considerably great phone with this chipset.



Gaming Experience:

PUBG Mobile 41 FPS
[Low]
Call of Duty: Mobile 43 FPS
[High]
Fortnite 26 FPS
[Low]
Shadowgun Legends 49 FPS
[Ultra]
World of Tanks Blitz 52 FPS
[Ultra]
Genshin Impact 30 FPS
[Medium]
Mobile Legends: Bang Bang 30 FPS
[Ultra]
Device Realme V3
720 x 1600

Gaming experience on this chipset is going to be a little faster than the MediaTek Dimensity 720. This chipset is combined with the 2 Big A76 cores which boost the performance. With 2 big Cortex A-76 cores, there are also going to be a few issues with heating. The frequency of this chipset is 2.0 GHz, which is good for long-term gaming. This chipset also supports the LPDDR4x ram. This means there will be no issues with using this chipset in a long-term gaming session. This chipset also supports a 120Hz refresh rate. This will help in smooth performance with low latency. This chipset is can support PUBG MOBILE at 60FPS, this is because of the scores of the GPU.

So, this was my full review of the MediaTek Dimensity 720 if you want to check out more articles like this then check the reviews in the menu. Also, do check out my YouTube channel. Thanks.
