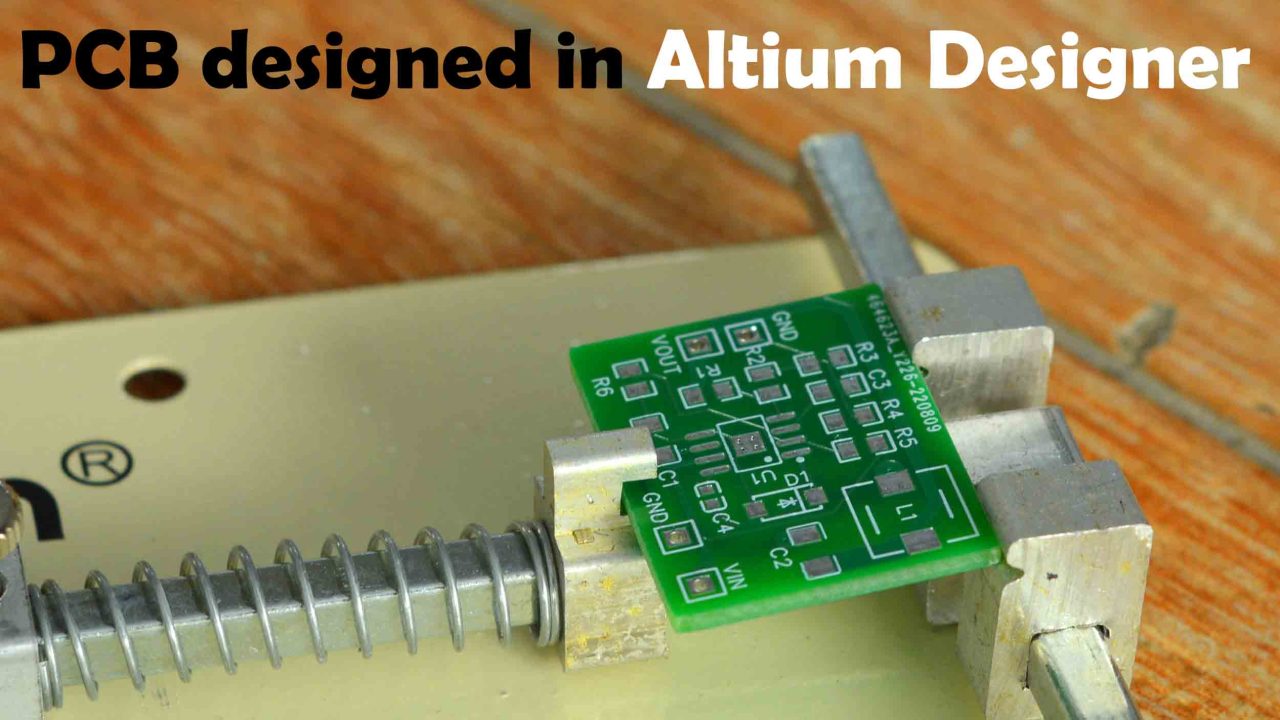

Types of ESD Tweezers and How to use them? Anti-static Tweezers, Anti-magnetic Tweezers- Until I was using large electronics components, until then, I didn’t feel any particular need for tweezers; because almost all of these electronics components I could easily pick with my hands. Recently, using the Altium Designer Schematic and PCB designing software; I designed a PCB in which I used tiny SMD components.

How to use ESD Tweezers




Seriously, designing this PCB in a professional software like Altium Designer was just a 30 minutes job. But the difficulty comes when the components have to be mounted and soldered.

How to use ESD Tweezers

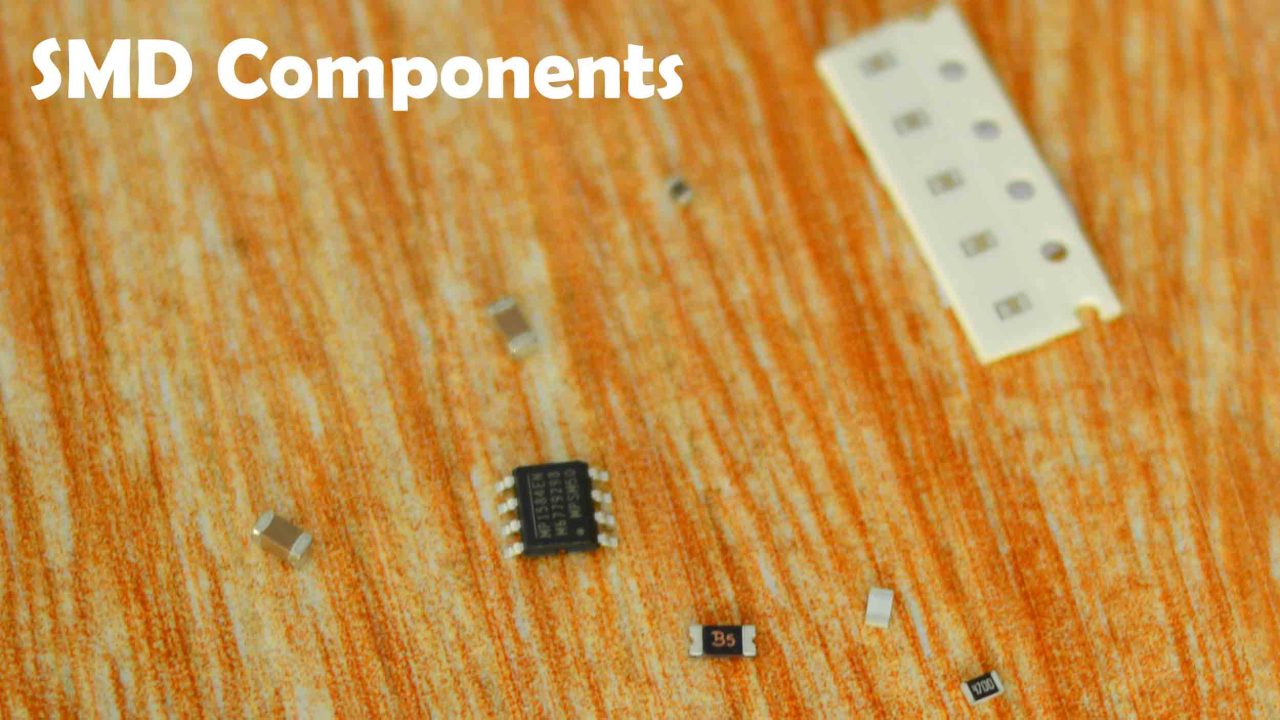

Just look at these tiny SMD components, it’s literally impossible for me to place these components on the PCB. And it was at this point when I realized, I need a good set of tweezers.

How to use ESD Tweezers

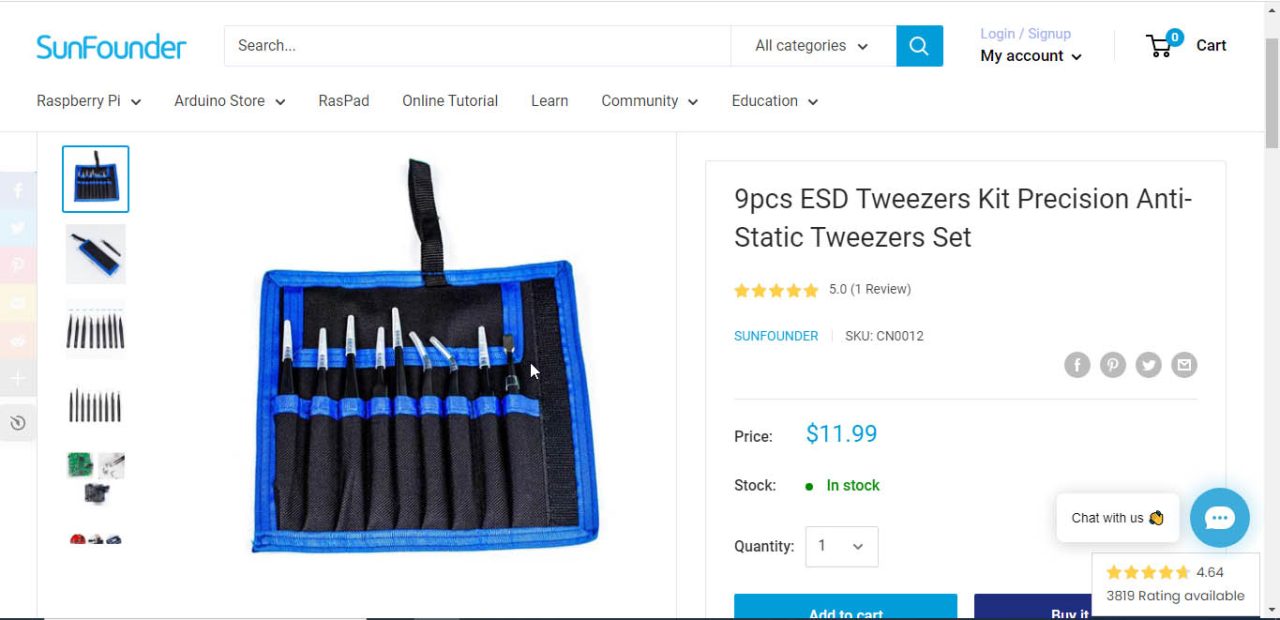

So, I got myself this nice portable ESD Tweezers Tools Kit from SunFounder at only 11.99 dollars with free shipping. It’s a 9 pieces ESD Tweezers kit. All the pointed tips are protected with plastic hats. So, be careful while using these pointy tweezers.



Amazon Link:

ESD Tweezers Kit

Other Tools and Components:

Top Arduino Sensors:

Super Starter kit for Beginners

Digital Oscilloscopes

Variable Supply

Digital Multimeter

Soldering iron kits

PCB small portable drill machines

*Please Note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!

How to use ESD Tweezers

The main reason behind selecting this particular ESD tweezers kit is that, all the tips are electroplated with ESD coating. ESD stands for electrostatic discharge or electrostatic dissipative. It offers additional versatility and safety when working with electrically sensitive equipment or components. In simple words, the tweezers tips are anti-static thus protecting the electronic components against damages due to static electricity.  All these tips are anti-corrosive, anti-magnetic, and solder adhesion resistant for greater functionality across different applications.

All these tweezers can be divided into 4 groups.

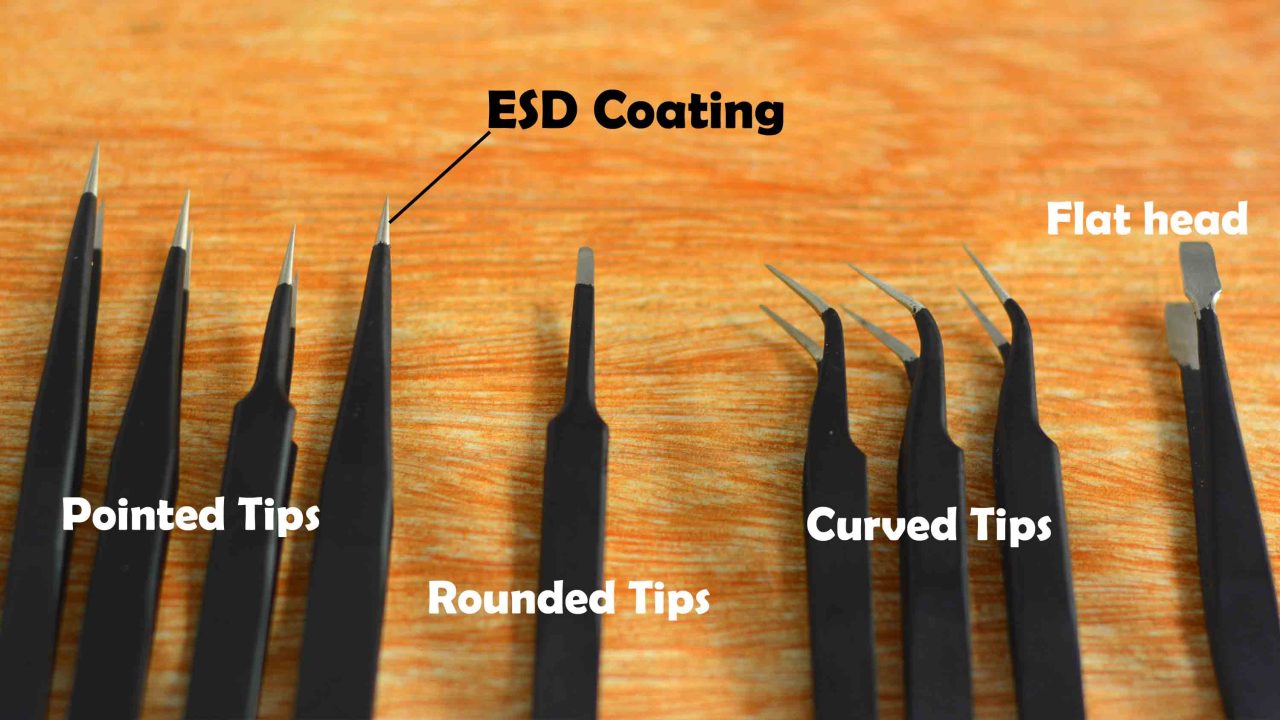

  1. Pointed Tips Tweezers
  2. Rounded Tips Tweezers
  3. Curved Tips Tweezers and
  4. Flat head Tweezers



With these pointed tips tweezers, you can easily mount and remove small smd components including resistors, capacitors, ICs, controllers, etc. These pointed tips are ideal for reaching into small and hard to reach areas.

Rounded Tips tweezers are used where high levels of precision aren’t required.

Curved Tips Tweezers allows the user to have easy control and accuracy at a comfortable angle.

Flat Head Tweezers are ideal for picking up larger objects, as they offer a larger surface area than standard tweezers.

How to use ESD Tweezers

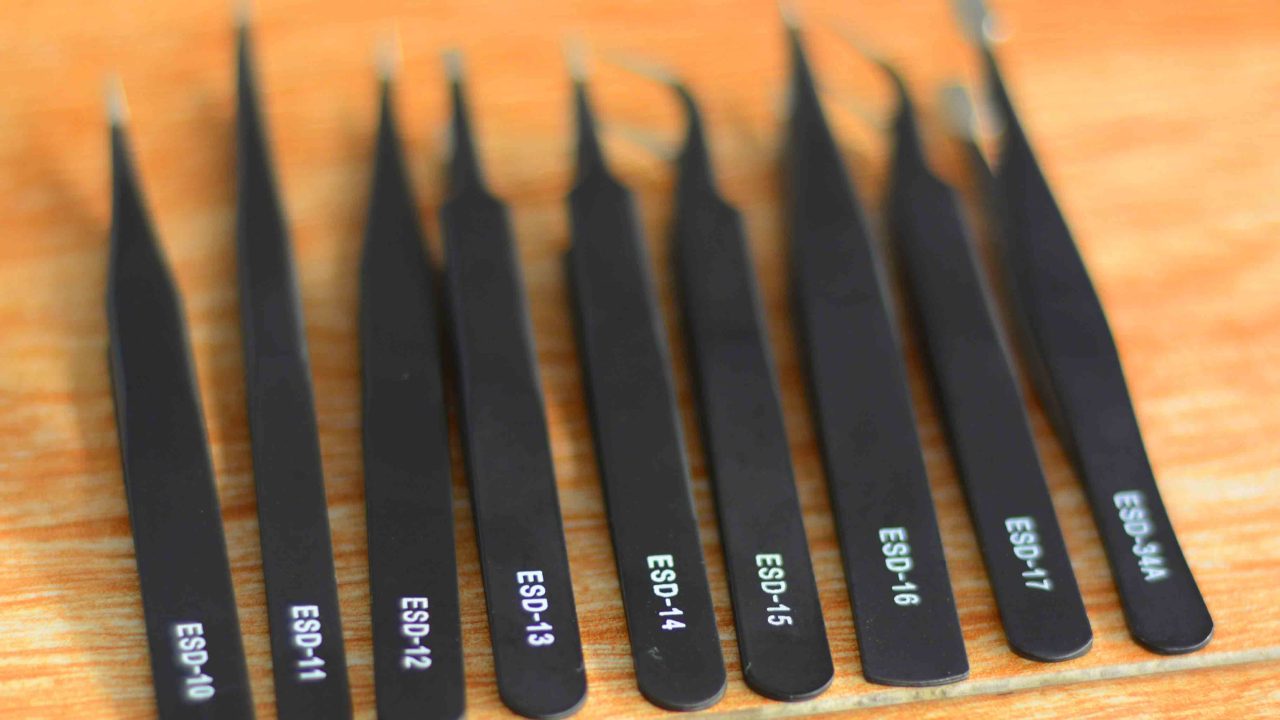

Every Tweezer has ESD and a number printed on it. The number presents a particular job it can be used for.

EDS-10: can work with soldering integrated circuit chips, or install replacement parts.

EDS-11: slender tweezers, suitable for small space replacement of precision components.

EDS-12: longer tweezers, the front width is more suitable for clamping circuit boards and other occasions need force.

EDS-13: not easy to damage devices, suitable to extract chips, circuit chips and other small parts from narrow space.

EDS-14: the whole tip is straight and slender, suitable for precision operation in narrow space.

EDS-15: 45°curved tip, suitable for precision operation and extraction in narrow space.

EDS-16: the whole tip is straight and slender, suitable for narrow space within the precision operation

EDS-17: 30°curved tip, suitable for precision operation and extraction in narrow space.

EDS-17: 10°curved tip, suitable for precision operation and extraction in narrow space.

EDS-34A: flat head tweezers with better hardness, suitable to clamp components, help processing components pins, and do some simple forming work.
