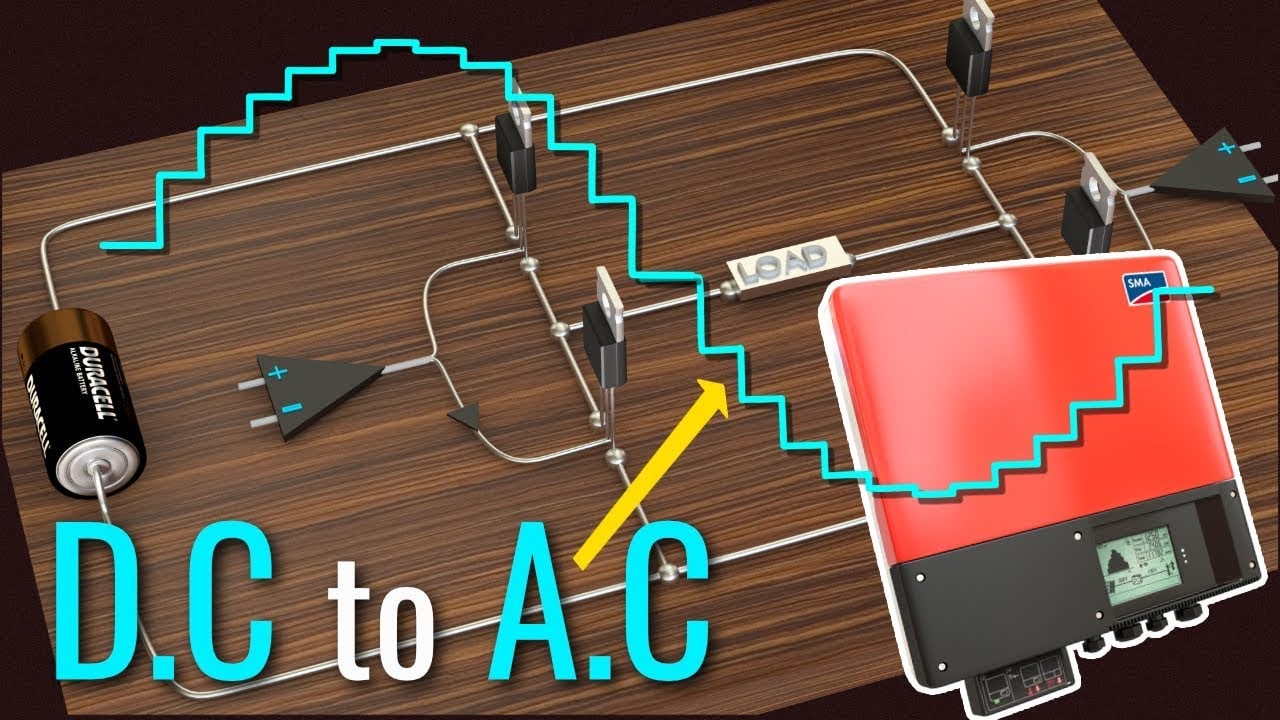

Inverters and How do they Work- Inverters have played a significant role in the modern technological world due to the sudden rise of electric cars and renewable energy technology. Inverters convert DC power to AC power. They are also used in uninterrupted power supply, control of power machines, and active filtering of electricity. This article will explain step by step how to get pure sinusoidal electric power output from DC power input step by step.

An Alternating current occasionally turns around its direction, consequently, the average estimation of an alternating current over a cycle will be zero. Previously, continuing to sine-wave creation. How about we perceive how a square wave alternating current is delivered, truth be told, the old sort inverters used to create straightforward square wave as their output.

Credit:

Learn Engineering YouTube Channel. A link to the video tutorial is given at the end of this article.

Inverters



How about we assemble an intriguing circuit as appeared with four switches and one input voltage. This circuit is known as a full-bridge inverter. The output is drawn between points An and B. To make this circuit examination simpler, how about we replace this actual load with a theoretical load. Simply note the current flow when switches S1 and S4 are on and S2 and S3 are off. Presently do the opposite and notice the current flow. Unmistakably the current flow is the inverse, for this situation, ac is the output voltage across the load. This is the essential strategy that delivers a square wave alternating current. We as a whole realize that the recurrence of the AC supply accessible in our homes is 60Hertz. This implies that we need to kill the switch on and multiple times in a second, which is preposterous whether physically or by utilizing mechanical switches. We present semiconductor switches, for example, MOSFET for this reason. They can turn on and turn off large number of times each second with the assistance of control signals. We can turn semiconductors on or off without any problem. The square wave output is a high guess of sine wave output old inverters used to create them.

Inverters

That is the reason you hear a humming noise when you run your electric fan or different machines utilizing square wave power. They additionally heat up electric hardware present-day inverters produce unadulterated sinusoidal output, how about we perceive how they achieve it, a strategy called pulse width modulation is utilized for this reason. The rationale of pulse width modulation is basic, create the DC voltage as pulses of various widths in regions where you need higher amplitudes. It will create pulses of bigger width. The pulses for the sine wave resemble this Now here is the interesting part. What will occur on the off chance that you average these pulses in a small time interval? You will be astonished to see that the state of the averaged pulses looks fundamentally the same as the sine curve. The better the pulse is utilized the better shape the sine curve will be. Presently the genuine inquiry is how to cause these pulses and how do we average them in a practical manner?

Inverters



We should perceive how they are executed in an actual inverter. Comparators are utilized for this reason. Comparators contrast a sine wave and triangular waves, one comparator utilizes a normal sine wave and the other comparator utilizes an inverted sine wave, the first comparator controls s1 and s2 switches and the second comparator controls s3 and s4. The s1 and s2 switches decide voltage level at Point A and the other two switches decide voltage level at point b. You can see that the one part of comparator output is fitted with a logic not gate. This will ensure that when s1 is on s2 will be off and vice versa. This additionally implies that we can never turn on s1 and s2 simultaneously Which will cause the DC circuit to short-circuit? Turning s1 gives cell voltage at Point A and turning on s2 gives zero voltage at a similar point, same is the case for point B.

Inverters

The switching logic of PWM is straightforward when the sine wave value is more than the triangular wave, the comparator produces one signal, in any case, zero signal. Presently notice voltage variation from the first comparator according to this logic, the control signal of one turns on the MOSFET, the voltage pulses created at Point A are appeared, apply similar switching logic and notice the voltage pulses produced at point B. Since we are drawing output voltage between point A and B the net voltage will be the difference between A and B.

Inverters



This is the exact pulse train, we need to make this sine wave. The better and finer the triangular wave the more accurate the pulse train will be. Presently, the following inquiry is how would we practically actualize the averaging? To make it exactly sinusoidal, energy storage components, for example, inductors and capacitors are utilized to smooth the power flow, they are called passive filters. Inductors are utilized to smoothen the current and capacitors are utilized to smoothen the voltage.

Inverters

With an inverter bridge a decent PWM strategy and a passive filter, you can create sinusoidal voltage and operate all of your machines with no fuss. The inverter innovation we have clarified so far has just two levels of voltage. Imagine a scenario where we present one more voltage level this will give a better approximation of the sine wave and can lessen instantaneous error such multi-level inverter innovation is utilized in high precision applications like wind turbines and electric vehicles. Inverters utilized in electric vehicles have intelligent frequency and amplitude control, in fact, Frequency controls the speed of an electric vehicle and amplitude controls its power, this way inverters act as the mind of electric vehicles by delivering electric power ideal for driving conditions.
