how to make Piezoelectric Generator

(Last Updated On: December 10, 2019)

Description:

Piezoelectric Generator is a power generation based Project based on the Piezoelectric sensors. In this Project total of 72 piezoelectric sensors are used. These 72 piezoelectric sensors are divided among 4 PCB plates, so each PCB plate has 18 sensors. The output of all the 72 piezoelectric sensors are connected in parallel to improve the current.

This is a detailed tutorial explaining

  1. Schematic
  2. PCB design
  3. Designing Transferring
  4. Etching
  5. Piezoelectric sensor testing
  6. Soldering
  7. Final testing


The components and tools used in this project can be purchased from Amazon, the components Purchase links are given below:

Arduino Uno: https://amzn.to/2YxCle6
Mega 2560: https://amzn.to/2ze1kdu
Piezoelectric sensors: https://amzn.to/2MCN04p
Bridge rectifiers pack: https://amzn.to/2C1o1D5
lm7805 Voltage Regulator: https://amzn.to/2IZEl5x
330-ohm resistors pack: https://amzn.to/2NtlAeh
female DC power jack socket: https://amzn.to/2KEo1gt
470 uf capacitors: https://amzn.to/2xDCOzf
5×7 cm vero board: https://amzn.to/2OHGbvn
female headers: https://amzn.to/2zqmtiJ
connection wires: https://amzn.to/2DpBuW7
Super Starter kit for Beginners : https://amzn.to/2KJvmKG
Jumper Wires: https://amzn.to/2KMoVXs
Bread Board: https://amzn.to/2MS4q8X
12v Adaptor: https://amzn.to/2Ntr6h1
PCB plate: https://amzn.to/2IUwpCt
Variable Supply: https://amzn.to/2MT4Qfj
Digital Multimeter: https://amzn.to/2Nvft9i
Vero Board / strip board: https://amzn.to/2MTf9jD
Soldering iron kit: “best” You guys should definitely purchase this: https://amzn.to/2zfoNuJ
Solder wire: https://amzn.to/2ufUMWf
Wire Stripper: https://amzn.to/2KOqxfU
wire cutter: https://amzn.to/2ucIq14
PCB small portable drill machine: https://amzn.to/2Nu62XF

*Please Note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!

This Tutorial also explains how to get rid of the negative voltages produced during when the piezoelectric sensor is pressed and then released. For the full discussion, making and explanation refer to the video given at the end of this Article.


Piezo Sensors Connections:

Piezoelectric Generator

As you can see the connection diagram is really simple. A piezoelectric sensor is connected with the ac input legs of the bridge rectifier. The positive leg of the bridge rectifier is connected with the anode of the 1n4007 diode. the cathodes of all the diodes are connected together, and all the ground legs of the bridge rectifiers are connected. So all the piezoelectric sensors are connected in parallel. These piezoelectric sensors will be used to charge a 6.3v 2200uf capacitor. Using a smaller value capacitor can speed up the charging process.

As these piezoelectric sensors generate current which is extremely low, so it really doesn’t matter which value diodes are you using.

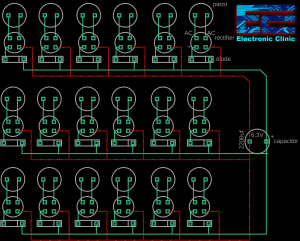

PCB Design:

This PCB “Printed Circuit Board” is designed in Cadesoft Eagle 9.1.0 version. This software can be downloaded freely, from the official website of the cadsoft eagle.


Download the Original PCB design:

peizoelectric circuit

After everything is set. We take a print out of the PCB design and transfer the design on the copper plate using Hot Iron. Then we dip the pcb plates in the water and wait for around 5 minutes. Then we remove the excess the paper. Finally we prepare the Ferric chloride Acid solution and start the etching process. The ferric chloride acid solution making and etching processing is explained in the video give at the end of this Article.

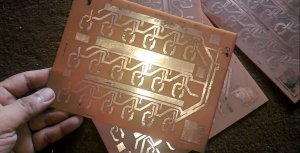

After transferring the Design on Copperplate and etching the final board looks like this.

Piezoelectric Generator

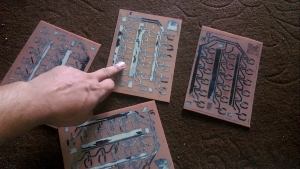

After Cleaning:

Piezoelectric Generator

Drilling:

Piezoelectric Generator

be very careful, if you are drilling for the first time and don’t forget to wear protective glasses, because this drill bit can easily break, For the beginners I suggest to use both hands, use one hand to hold the drill machine and another hand to hold the PCB and to support the other hand. Keep the drill machine straight, and apply a normal downward force. Avoid speeding in the beginning if you are a beginner. Take short breaks while doing the drilling, this way the drill bit will remain cool.


PiezoElectric sensor:

Piezoelectric Generator

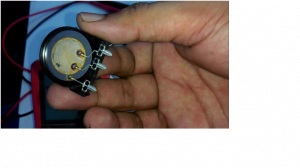

A piezo sensor which is also known as the piezoelectric sensor is a device or an electronic component that uses the piezoelectric effect “Pressure” to measure changes in acceleration, Pressure, Force, Strain or Temperature by converting them to an electrical charge.

Piezoelectric Generator

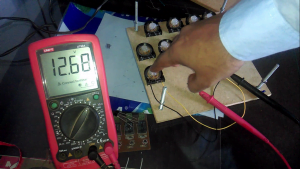

The voltage generated by the piezoelectric sensor depends on the amount of pressure we apply. Be very careful while apply the pressure as the disc can get damaged. If we apply pressure in the correct way we can generate voltages even more than 20 volts. But we have an issue,


Piezoelectric Generator

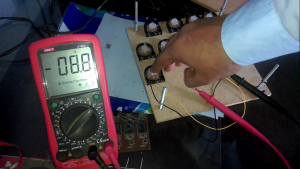

as you can see we are getting both the positive and negative voltages, These positive and negative voltages vary and make an ac type signal. We have to get rid of the negative voltages, we can do this by simply connecting the piezoelectric sensor with a bridge rectifier.

This is a bridge rectifier, it has four legs, the two legs are labeled with ac signs and the third one labeled with a + sign and the last one is the ground. The longer leg is the positive one.

Soldering:

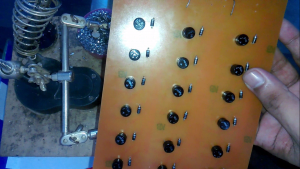

First of all, we insert all the components into the PCB boards and complete their soldering.

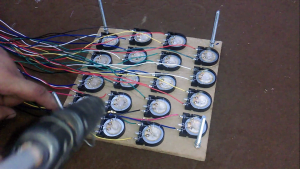

Fix all the piezoelectric sensors on the hardboard and Then Solder wires with the piezoelectric sensors.

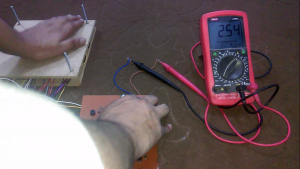

Finally Testing:

Video:
