MediaTek Dimensity 9000 Plus Complete review with benchmarks

Introduction:

MediaTek Dimensity 9000 Plus- Mediatek just launched their most fastest Chipset of all time. It has some of the fastest clock speeds with support of higher memories, more faster bandwidth, better wifi support, and many more. We found most amazing details in our review of this chipset. So let’s start.

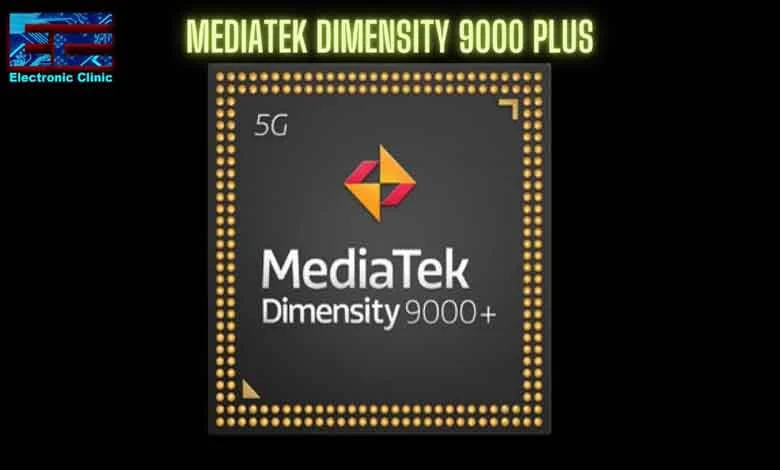

MediaTek Dimensity 9000 Plus




MediaTek Dimensity 9000 Plus:

Over the last few years Mediatek is leading in the mobiles chip market, but in 2020 Mediatek lunched Mediatek Dimensity Series and we’ve seen some amazing chipsets like MediaTek Dimensity 1000, MediaTek Dimensity 1200 which was launched in Poco X3 GT, MediaTek Dimensity 9000 that was launched in Vivo X80 and many more. Now we have the full specs and full complete details of the MediaTek Dimensity 9000 Plus, let’s start off with the benchmarks.

AnTuTu 9:

Total score 1097287

 MediaTek Dimensity 9000 Plus shows the best Antutu 9 scores. We can see a big jump in GPU performance. The total performance of the GPU is above 42000+, which is much faster than the Qualcomm Snapdragon 8 Gen 1. The CPU also shows one of the best scores. It is 30000+ which is a bit faster than the Qualcomm Snapdragon 8 Gen 1. The memory scores also shows a significant boost. MediaTek Dimensity 9000 Plus memory is faster than Qualcomm Snapdragon 888 Plus, MediaTek Dimensity 1200. Which scores 188783 The Ux is also showing one of the best performances. It scores 183037, which is faster than Qualcomm Snapdragon 888 Plus, MediaTek Dimensity 1200. Total scores are above 1024162. Which tops the AnTuTu 9 benchmarks. It will depend on which smartphone manufacturers using this chipset with which type of ram. MediaTek Dimensity 9000 Plus is considerably gaining performance boost and beating every processor in the flagship category. This chipset will be launched in many smartphones.



Geekbench 5:

Single-Core Score 1333
Multi-Core Score 4321

The single core scores show the best performance in this smartphone mid-range category lineup. The single core scores are 1333. And the multi-core scores are 4321 which is also good at this point.

CPU:

Architecture 1x 3.2 GHz – Cortex-X2
3x 2.85 GHz – Cortex-A710
4x 1.8 GHz – Cortex-A510
Cores 8
Frequency 3200 MHz
Instruction set ARMv9-A
L1 cache 1024 KB
L2 cache 3.5 MB
L3 cache 8 MB
Process 4 nanometers
TDP 4 W

MediaTek Dimensity 9000 Plus launched with the 1 core of Cortex-X2 which is an ultra-high performance core that is clocked on 3.2 GHz. The other 3 cores are based on Cortex-A710 which are high-performance cores that are clocked on 2.85GHz. The other 4 cores are power efficiency cores. The Cortex-X2 also has the best speeds and good set instruction architecture. There are total of 8 cores with a boost clock of 3.2 GHz. MediaTek Dimensity 9000 Plus has the latest set instruction architecture. It is considerably fast and strong enough to beat some of the latest and most powerful Chipsets. Dimensity 9000 Plus is fabricated on 4Nm. This means MediaTek Dimensity 9000 Plus will be power efficient and will consume less battery and will produce less heat. This chipset is using the latest version of ARM which will help in loading apps fast. This chipset also has some of the fastest L1, L2, and L3 cache memories. L1 cache memory is 1MB, L2 cache memory is 3.5 MB and respectively L3 cache memory is 8MB. This will also help in executing the instructions faster.



Graphics:

GPU name Mali-G710 MC10
Architecture Valhall 3
Execution units 10
Shading units 512
Vulkan version 1.1
OpenCL version 2.0
DirectX version 12

MediaTek Dimensity 9000 Plus has a new architecture-based GPU. Valhall 3 is the new architecture that they are using in the Dimensity 9000 Plus. The GPU is also manufactured using the 5Nm technology. Which means it will also be power efficient. The name of the GPU is Mali-G710. This is the fastest GPU in this lineup. The MediaTek Dimensity 9000 Plus is fast enough to handle games like FREEFIRE, and PUBG MOBILE. The GPU score is faster than the MediaTek Dimensity 8100 which means there will be a smooth gaming experience on this chipset. The GPU is clocked on 840MHz. The shading units are also 512 which will help in rendering the graphics in gaming. There is also DirectX support of 12 which means this processor will support the latest games without any bugs and delays.

Memory:

Memory type LPDDR5X
Memory frequency 3750 MHz
Bus 4x 16 Bit
Max bandwidth 60 Gbit/s

MediaTek Dimensity 9000 Plus uses the new LPDDR5x ram with the memory frequency of 3750MHz and uses the bus of 4×16. This ram is the fastest that you can see on today’s new flagships chipsets. The ram may be changed according to the smartphones. The memory frequency is also going to be changed according to the smartphones. The max memory bandwidth is 60Gbit/s.



Support:

Neural processor (NPU) Yes
Storage type UFS 3.1
Max display resolution 2960 x 1440
Max camera resolution 1x 320MP, 3x 32MP
Video capture 8K at 30FPS, 4K at 120FPS
Video playback 8K at 60FPS, 4K at 120FPS

Dimensity 9000 Plus uses its own Neural engine which is fast with the AI calculations. MediaTek Dimensity 9000 Plus uses the UFS 3.1 which is fast. This gives you fast reading and writing speeds.

MediaTek Dimensity 9000 Plus has the maximum display support of QuadHD+ and can support the 144Hz refresh rate with the super Amoled. Dimensity 9000 Plus is going to be very aggressive when it comes to a camera support. It supports a camera up to 320MP. The video capture is kept on 8k at 30FPS and the video playback is also 8k at 60FPS. It is great to see there is 8k support on a 2022 flagship processor.

Connectivity:

4G support LTE Cat. 24
5G support Yes
Wi-Fi 6
Bluetooth 5.3

MediaTek Dimensity 9000 Plus have 5G support. The Dimensity 9000 Plus also comes with wi-fi 6 and the Bluetooth version of 5.3. This will give you better signals and better speeds. Dimensity 9000 Plus uses its own 5G modem. It is not fast as the X65 but it gives you good speeds.




Smartphones

Phones with Dimensity 9000 Plus AnTuTu v9
1. Xiaomi 12 Pro (Dimensity) 1104412

MediaTek Dimensity 9000 Plus will be launched in many smartphones. Xiaomi 12 Pro is at the top. Which is a considerably great phone with this chipset.



Gaming Experience:

The gaming experience on this chipset is going to be a little faster than the Qualcomm Snapdragon 888 plus. This chipset is combined with the 4 Big X2 cores which boost performance. With 4 big Cortex X2 cores, there are also going to be a few issues with heating. The frequency of this chipset is 3.2GHz, which is good for long-term gaming. This chipset also supports the LPDDR5x ram. This means there will be no issues with using this chipset in a long-term gaming session. This chipset also supports a 165Hz refresh rate. This will help in smooth performance with low latency. This chipset is can support PUBG MOBILE at 90FPS, this is because of the scores of the GPU.

So, this was my full review of the MediaTek Dimensity 9000 Plus if you want to check out more articles like this then check the reviews in the menu. Also, do check out my YouTube channel. Thanks.
