Raspberry Pi Pico and PN532 NFC RFID Module using Arduino IDE- In today’s article, you will learn how to use PN532 NFC RFID module with Raspberry Pi Pico. You can also use Raspberry Pi Pico W. This is going to be a beginner’s level project as we will be controlling some LEDs. Once you learn how to control LEDs then you can control almost anything, you will only need to replace those LEDs with transistors to control relays and then you can control high voltage devices or you can use MOSFETS to control high ampere DC loads.

If you are just getting started with Raspberry Pi Pico or Raspberry Pi Pico W, and the PN532 RFID modules then I highly recommend read my getting articles on all these modules.

Raspberry Pi Pico or Raspberry Pi Pico W with Arduino IDE getting started tutorial

PN532 RFID Module with Arduino

Because you must know how to install a Raspberry Pi Pico board in the Arduino IDE and how to use different interfaces of the PN532 RFID module. So, without any further delay, let’s get started.




Amazon Links:

Raspberry Pi Pico

PN532 NFC RFID Module

Raspberry Pi Pico W

Raspberry Pi Pico W Ultimate Kit

Other Tools and Components:

Top Arduino Sensors:

Super Starter kit for Beginners

Digital Oscilloscopes

Variable Supply

Digital Multimeter

Soldering iron kits

PCB small portable drill machines

*Please Note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!



PN532 RFID with Raspberry Pi Pico:

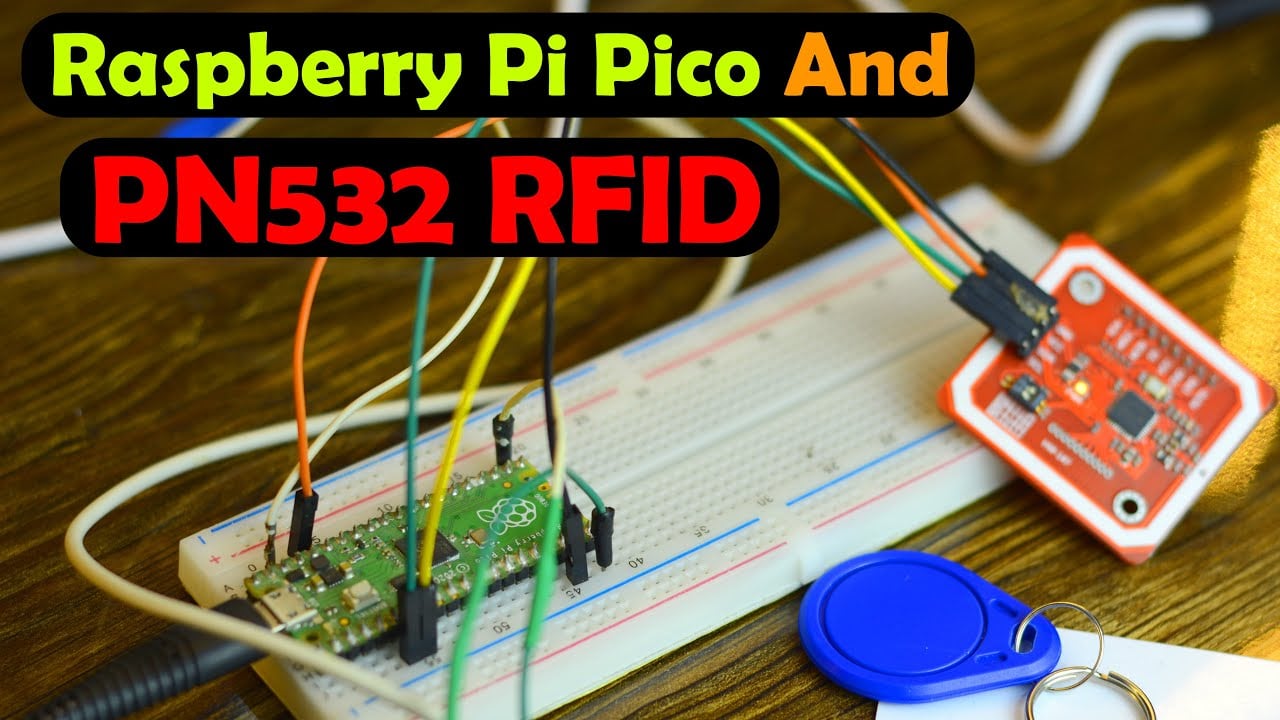

Raspberry Pi Pico and PN532 RFID

Two LEDs are connected with the GP15 and GP16 pins of the Raspberry Pi Pico.

The VCC and GND pins of the PN532 RFID module are connected with the 3.3V and GND pins of the Raspberry Pi Pico. Whereas the PN532 RFID module SDA and SCL pins are connected with the GP4 and GP5 pins of the Raspberry Pi Pico.

Make sure you activate the I2C interface by turning ON channel 1 and make sure you turn OFF the channel 2 as you can see in the image given below.

Raspberry Pi Pico and PN532 RFID

Any that’s all about the connections.

It doesn’t matter if you start with HSU, I2C, or SPI, first you will need to download all the required libraries.

Download PN532 RFID Module Library

Simply download the above WinRAR folder, extract it, and double-click to open the folder.

Raspberry Pi Pico and PN532 RFID

You can see inside this folder we have all the required libraries, so simply copy these folders and paste it into the Arduino libraries folder.
