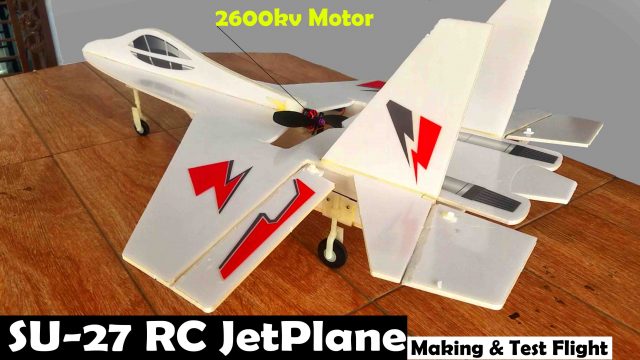

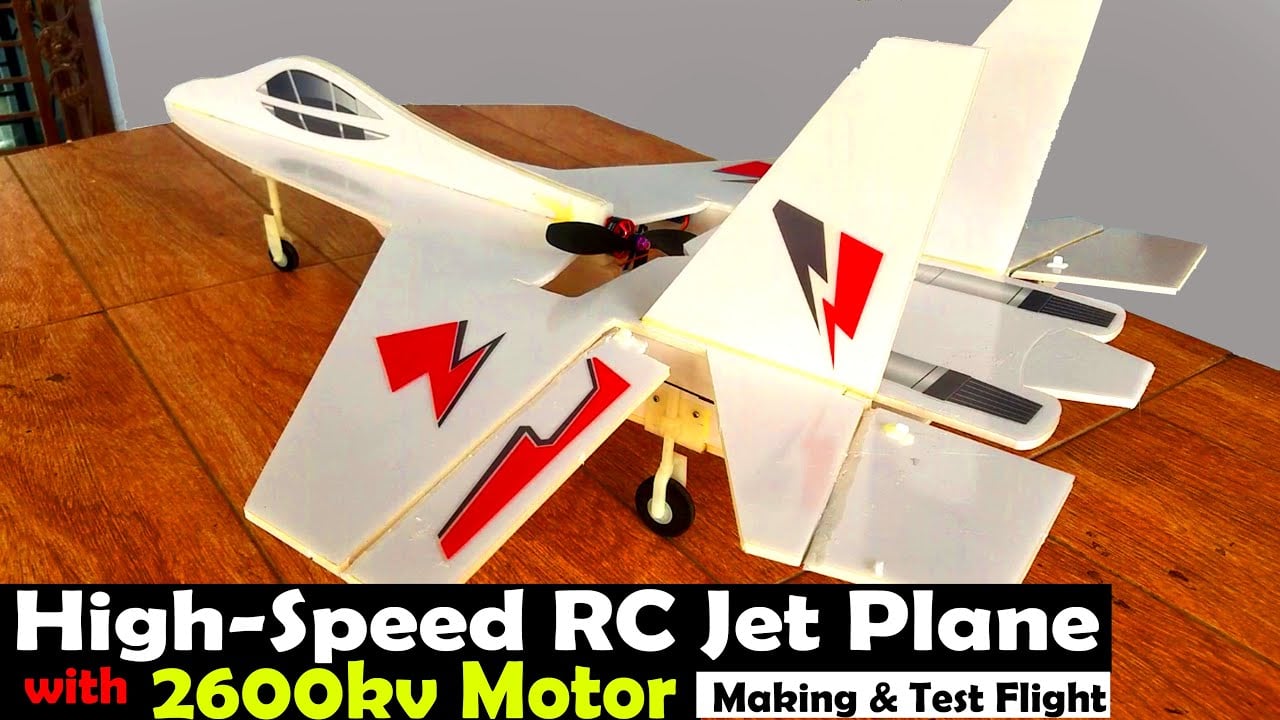

RC Jet Plane SU27 with 2600KV Brushless Motor Making and Flight Test

RC Jet Plane SU-27 making and Flight Test, Description:

In this tutorial, you will learn how to make an RC Jet Plane using the SU-27 Model Readymade template, 2600kv brushless dc motor, and the Flysky FS-i6 Transmitter and receiver. The reason I made this RC jet plane is to improve my Piloting skills as I badly crashed my previous two RC planes. In my last tutorial, I explained the calculations and designing of twins motor RC airplane, which flew very well but during the left turn I messed up everything, as I pushed the control stick all the way to the left. At this point, I realized no matter which RC plane I design and make I will crash it.  So, this is the reason I decided to start with the readymade template to save time so that I can quickly improve my piloting skills before I design and make other RC Planes.

RC jet plane

If you are good at flying RC planes then you can read my previous article in which I explained how to calculate each and every part of the RC plane, so, if you want to design and make your own RC plane then you should definitely read this article.

allpcb circuit

RC jet plane

Anyhow, as usual, my first attempt ended up in a crash, this was 100% my mistake. The nose part was a little damaged which I fixed by attaching Carbon fiber rods and some adhesive tape.

Anyhow, I corrected myself and kept reminding myself not to repeat the same mistake, and finally, I learned how to fly an RC Jet plane. There are some important things that I will explain later in this article, which I believe as a beginner you should know and if you follow my words then you will be able to fly almost any type of RC plane. First, we will start with building the RC plane, and then we will do the thrust testing, and then some tips to not crash your RC Plane.

Without any further delay, let’s get started!!!


Amazon Purchase Links:

Best RC planes and Accessories

Flysky FS i6 Transmitter and Receiver

Micro Servo Motors

Top Brushless Motors

1000KV Brushless Motor, 30A Speed controller, and Propellers

3s Lipo Batteries

4s Lipo Batteries

2600kv brushless motors

4-Hole Nylon Pin Control Horns

Steel Z Push Rods

Balsa Wood Sheets for RC Airplane

Other Tools and Components if you need:

Super Starter kit for Beginners

Digital Oscilloscopes

Variable Supply

Digital Multimeter

Soldering iron kits

PCB small portable drill machines

*Please Note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!

The building part is quite simple, as it’s a readymade template, for the step-by-step assembling watch video tutorial given at the end of this article.

RC jet plane

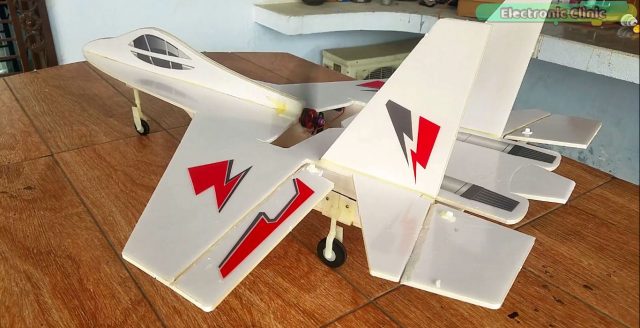

Our RC Jetplane is ready, I skipped the parts which I have already explained in my previous articles, like for example connecting the ailerons and elevators and how to set up the Flysky FS-i6 Transmitter and Receiver.

When you are done with the making, the first step is the selection of the Brushless motor. Your brushless motor thrust should be approximately double the weight of your RC Plane if you want the speed. I selected the Skywalker 2600KV brushless motor which produces over 1000 grams of thrust. The propeller I am using is the 8045 which is the puller type, so, I used it upside down to make it Pusher Propeller which is not that efficient, but I don’t have the pusher type propeller so I will continue with this prop. If you are planning to build the one, I highly recommend purchasing the pusher-type propeller.

One more thing that you should take care of is, if your prop is moving in the clockwise direction then the nut cap should tight in the opposite way, otherwise, the prop will come off during the flight which is not good. The same thing applies if the prop is rotating in the counter-clockwise direction.

All your control surfaces should work perfectly as you move the control stick up and down and left and right. You should also be able to control the Brushless DC motor as you move the throttle stick. So everything is working perfectly, and now I am ready for the next step.

Prior to the flight test, you should carefully set the center of gravity which I have already explained in my previous articles and videos.

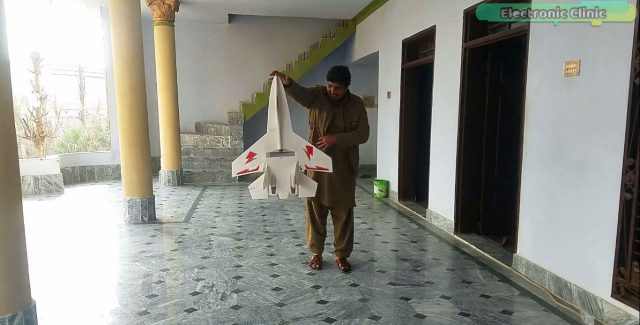

The next most important test is to check if the Brushless motor is producing enough thrust to left the RC plane up in the air. The 2600kv brushless motor easily lifts this RC plane up in the air, which you can check in the video.

RC jet plane

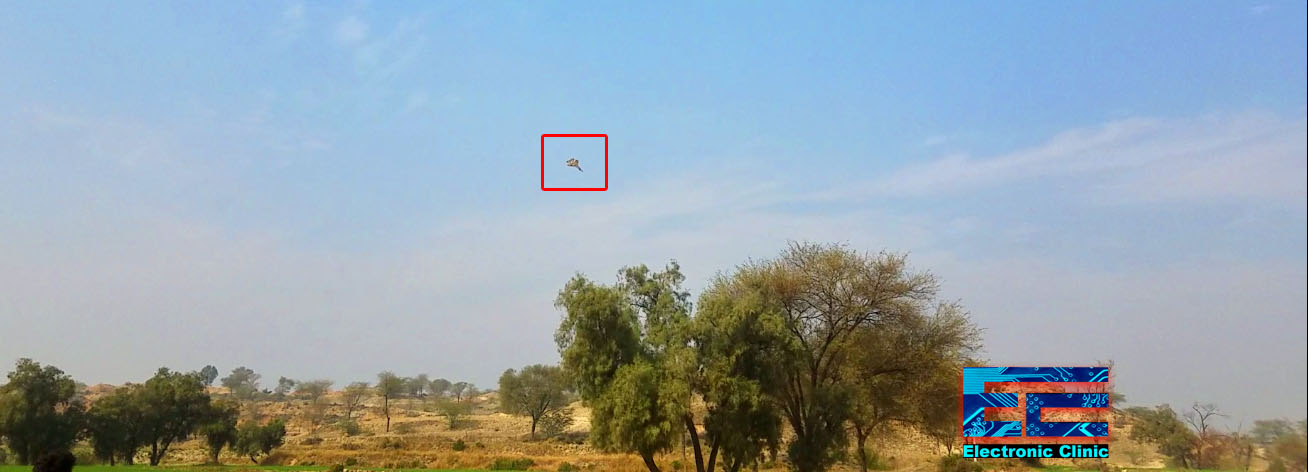

So, after doing all the initial tests, finally I was ready for the first flight test. The first flight test was a complete fail as I crashed it, but luckily only the nose part was damaged which I fixed.

I learned something from this crash, never use full throttle in the beginning and as you move the RC plane to the left or right also move the control stick a little in the downward direction to lift the airplane up in the air, this way if the plane even roll you will get enough time to control the RC plane. For a successful flight first, take the RC plane to some height then play with the control stick, keeping it near to the ground can result in a crash if you are a beginner. If your RC plane is up in the air then you won’t get nervous and you can make your RC plane do things that you want.

RC jet plane

The last and most important point is when your RC plane gets out of control lower the throttle and leave the control stick and give some time to your RC plane to get stable, once your RC plane is stable then again you can increase the speed. For a good flight, experience don’t use full throttle at all times, from time to time reduce the throttle, this way you can also check the gliding performance of your RC plane.

I really enjoyed the SU27 RC Jet plane as 2600kv made it quite fast. If you are a beginner start with the 2600kv brushless motor, trust me on this, you will never face the thrust issues as it produces over 1000 grams of thrust. So, now that I have improved my piloting skills, very soon I will design and make my own RC Jet plane. You can subscribe to my YouTube channel and Website if in case you don’t want to miss any of my upcoming tutorials and projects.



Watch Video Tutorial:



Beginners RC Plane with High Stability:
