Diy Mini Electric Griddle, Description:


Diy 12V Mini Electric Griddle, Electric Hotplate, Electric Frying Pan- In this tutorial, you will learn how to make this portable mini electric griddle at your home for camping. You can run this electric Griddle on a 12V battery or a solar panel. People in Pakistan and India call this Roti Maker or Tawah. I am performing this experiment; just to help you guys how to get started. Once you learn how to make this very basic electric griddle then you can design yourself a fancy electric griddle.

diy electric griddle

Recently, I got this 80 watts PTC Heater Plate which I previously used to boil some water. Since this Heater plate is cable to raise the temperature above 100 degrees Celsius, so, I thought why not to make a Mini Electric Griddle with it. In fact, with this PTC heater plate, you can also make Electric Frying Pan or Electric Skillet, etc. First, I will show you how I made this mini electric griddle and then I will share with you the test results and I will also tell you how much time It took me to cook 4 breads. Without any further delay let’s get started!!!

Amazon Links:

PTC Heater Plate

Best Electric Griddles

Best Electric Frying Pans

Best Electric Skillets

Other Tools and Components:

Arduino Nano USB-C Type (Recommended)

ESP32 WiFi + Bluetooth Module (Recommended)

Top Arduino Sensors:

Super Starter kit for Beginners

Digital Oscilloscopes

Variable Supply

Digital Multimeter

Soldering iron kits

PCB small portable drill machines

*Please Note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!

Mini Electric Griddle Making:

diy electric griddle

For making this Mini Electric Griddle or Electric Frying Pan you will need Aluminum plate which you can easily find in the kitchen. Since I have only one PTC Heater plate so that’s why I decided to make a mini electric griddle, if you have 2 or 3 of these PTC heater plates then you can build a bigger electric griddle, Anyways, I decided to start with 140mm diameter aluminum plate.

diy electric griddle

The making of this mini electric griddle is so simple, as you can see in the image above. I simply cut the aluminum plate and fixed the PTC heater plate. You can also apply some thermal paste to the heater plate to get nice surface contact. Be very carefully while cutting the aluminum plate and don’t forget to smooth the edges using sandpaper.

diy electric griddle

My electric Griddle is ready and let’s first check how quickly it raises the temperature. I just connected my 12V dc power supply. My Qaiweets smart digital multimeter is already ON and I am going to use this K-type thermocouple to measure the temperature.

Altium Sponsor:

altium designer sponsor

Altium Designer is the world’s most trusted PCB design system. Altium Designer enables engineers to effortlessly connect with every facet of the electronics design process. Over 35 years of innovation and development focused on a truly unified design environment makes it the most widely used PCB design solution. With Altium Designer you can create PCB designs with an intuitive and powerful interface that connects you to every aspect of the electronics design process. Route it your way through any angle, tune for the delay, Push, Slide, and Walkaround faster than ever. Interact and collaborate with mechanical designers like never before in a photo-realistic, 3D design environment. If you want to get started with the Altium designer, you can click on the get started.

diy electric griddle

As you can see the temperature is increasing quickly, it’s been two minutes and now the temperature is around 107 degrees Celsius at the center of the Aluminum plate, at the outer edges the temperature is still below 90 Degrees as I am using the heater plate at the center, so it will take a minute or so to raise the temperature at the outer edges, after waiting for 1 more minute the temperature increased to 115 degrees Celsius and it was still increasing. At this point, I decided to start cooking some flatbreads.

diy electric griddle

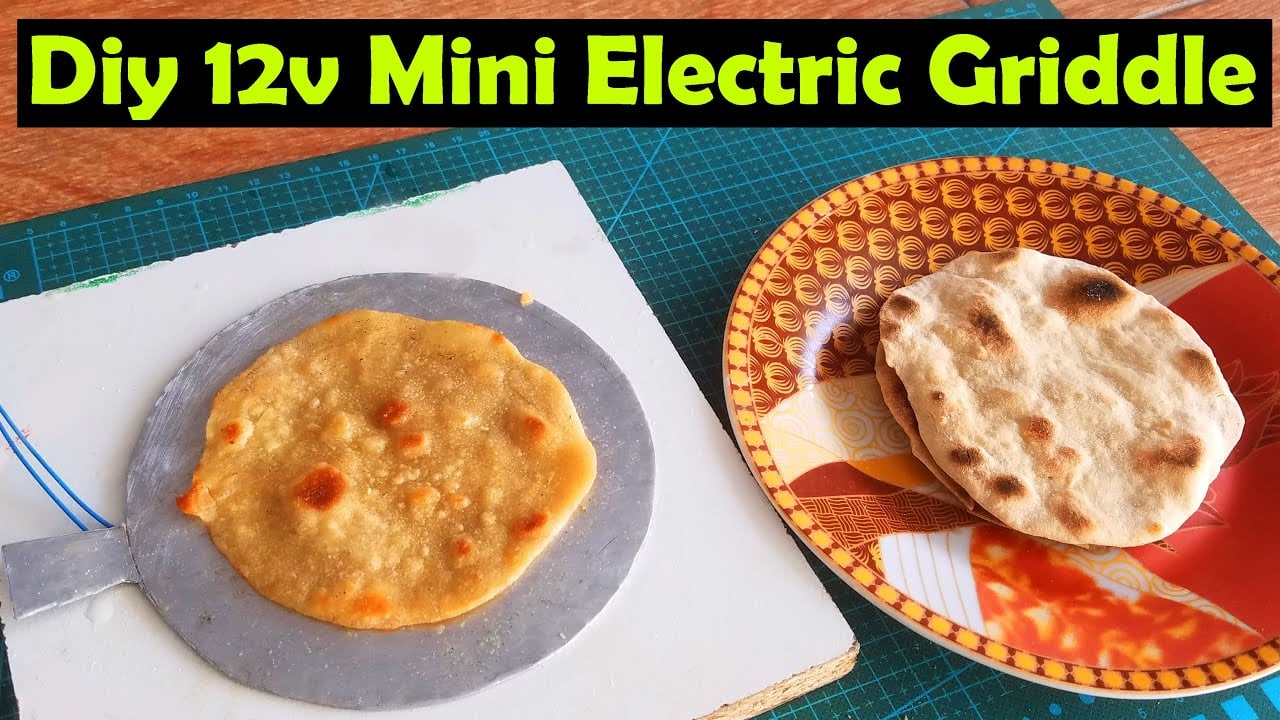

So, after 25 minutes of waiting here is my first hot crisply flatbread. I know, it took a lot of time to cook this mini flatbread, but at least it’s working. The cooking time can be reduced if we use two or three of these PTC heater plates and this way we can build a fully functional and completely portable battery or solar operated Electric Griddle, Frying pan, or skillet etc.

diy electric griddle

Cooking a Paratha was much easier as the cooking coil reduced the time and this time it took me 15 minutes to cook this mini soft Paratha. It took me around 70 minutes to cook all 4 pieces of bread. So, from all these tests, it’s obvious we can make different cooking machines using a number of these PTC heater plates. 1 Heater plate isn’t enough; you will need at least 3 or 4 of these heater plates to make a fully functional Electric Griddle, Electric Fry Pan, or Electric Skillet, etc. So, that’s all for now.
