LoRa Network using Arduino, Description:

LoRa Network, Master Arduino LoRa to Multiple Arduino Lora Nodes, LoRa End Nodes- In this article, you will learn how to make a LoRa Network using Arduino boards, SX1278 LoRa transceiver modules, a Servo, an I2C supported SSD1306 Oled display module, and a pair of Potentiometers.

I have already uploaded an article on the LoRa network, in which I have practically demonstrated that how a LoRaWAN can be implemented by using multiple LoRa transceiver modules. Guys, you might be thinking that when I have already implemented LoRaWAN, then what is the need to work on this project once again? Well, you will get its answer in a minute.

As you know, every person or a company has a specific requirement that for what purpose a LoRa network has to be designed. Similarly, I also had to keep certain personal requirements into consideration when I was designing my LoRaWAN or LoRa network. I wanted, that my designed LoRa network had a Master Node and rest of the LoRa Nodes just act as sensor Nodes.

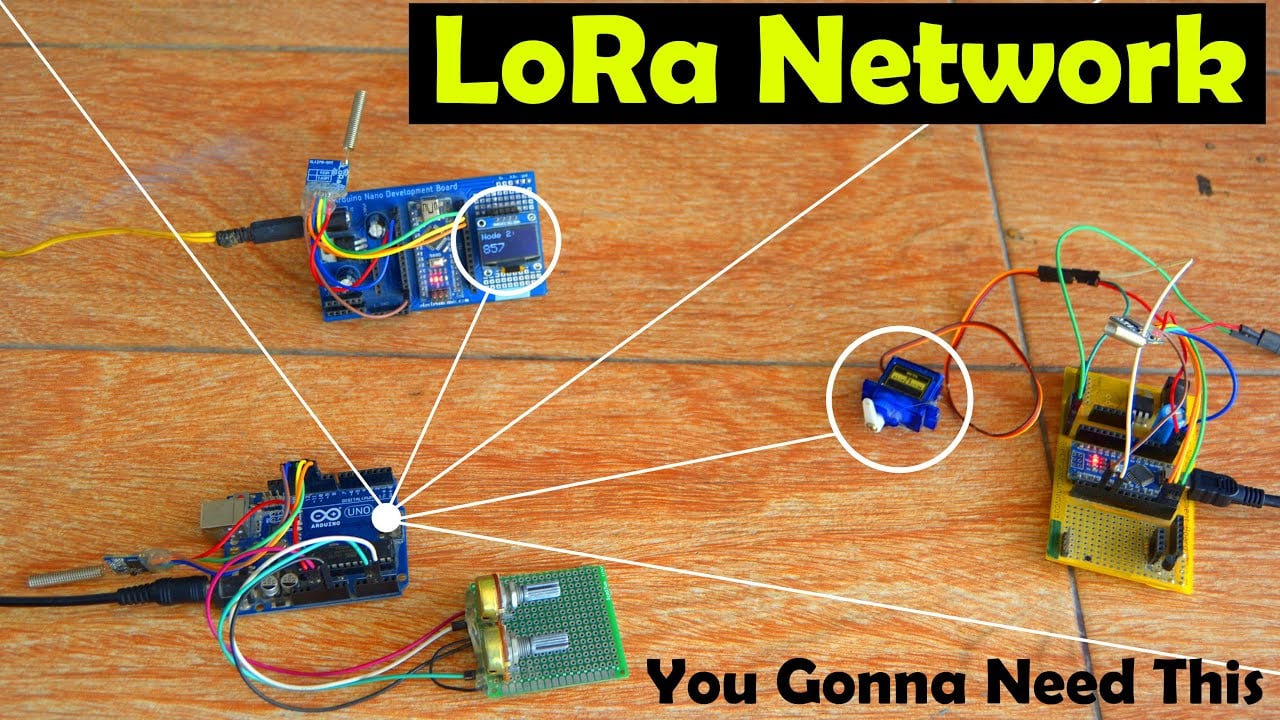

So, keeping in view this necessity before me, I worked out and designed this LoRaWAN network. I used a total of 3 Nodes in this LoRaWAN network.

To the master Lora Node an i2c supported Oled display module is connected which I used for displaying the data received from the other two LoRa nodes.

To the Lora Node1 a potentiometer is connected which I used as the sensor. You can replace this sensor with any other sensor of your choice.

To the Lora Node2, DS18b20 waterproof one-wire digital temperature sensor is connected.

The Master Lora Node, first, send request to the Lora Node1, for this I created a timer using the millis() function. So, for the first 5 seconds the Master Lora node sends multiple requests to the Lora Node1 and receive data from the Node1, this time duration can be changed in the programming. But it’s good to give it enough time so that the master node can get multiple replies from the Lora end device. As you can clearly see for the first 5 seconds it receives data from the Node1 and then for the other 5 seconds it receives data from the Lora Node2 to which the DS18b20 Temperature sensor is connected.

The Node name is also printed on the Oled display module so there is no confusion at all.

You can clearly see, that in this project I am only monitoring the sensors and I am not controlling anything.

A few days back, one of my followers asked me, that how can we send sensors data from the Master LoRa Node to Multiple LoRa END devices? If you remember during my previously designed LoRa network, I used to send data to Master Node from END devices. Whereas, in today’s LoRa Network, I will send data or commands from the Master LoRa node to multiple LoRa END devices.

As you can see a master LoRa Node, having two potentiometers connected to it. Servo is connected to LoRa node 1, whereas the Oled display module is connected with LoRa Node 2. I have programmed the Master LoRa node in such a manner that one of the two potentiometers will control Servo, whereas value of the second potentiometer will be printed on the Oled display module. Instead of using the potentiometers you can use some other types of sensors and the same thing applies to the Servo and Oled display module. It’s totally up to you what exactly you want to control.

By the way, you might be thinking how does Arduino come to know about which potentiometer’s data has to be sent on which LoRa Node or LoRa END device? Well, you don’t have to be confused, in this network every LoRa node has a specific address. And it is with the help of these addresses, the master LoRa node knows which potentiometer data has to be sent onto which LoRa END device. Enough with the talking, let’s practically see this LoRa network in action?

You can see, I have powered up all LoRa Nodes. And, you can also clearly see there is no physical connection between the Nodes, because it is obviously a wireless Network. Right now value on the Oled display module is 827 and you can also see the position of the Servo. Now, I will use the two potentiometers on the Master LoRa Node to change the value on the Oled display and to change the position of the Servo.

So, you can see how easily we can transmit data and commands from a Master LoRa Node to multiple LoRa END devices. You can also convert Master Node into an loT Gateway and as such, you can manage your LoRa Nodes from any country of the world through the application of your cell phone. Therefore, if you are interested to learn how to design a LoRa gateway, you must surely watch out my previous videos. You can find links in the description given below.

I am sure by now you might have got an idea of how does this system works. So, without any further delay, let’s get started!!!
