Read Raspberry Pi Pico onboard temperature sensor

Raspberry Pi Pico OnBoard Temperature Sensor:

In this article, I am going to explain how to use the Raspberry Pi Pico Onboard temperature sensor and display its value on the SSD1306 Oled display module. I going to use this temperature sensor for monitoring the ambient temperature. I don’t know if this sensor is going to give me the exact value as its directly mounted on the Pico board as it may sense some heat from the board.

This onboard temperature sensor can be quite useful in situations when used in high-temperature areas, so this sensor can monitor the Pico board temperature and when the temperature exceeds a predefined value a Fan or other cooling system is automatically turned ON. So, let’s go ahead and take a look at the circuit diagram.

Previous Articles:

Raspberry Pi Pico Vs Arduino.

Raspberry Pi Pico Pinout & Specs

Raspberry Pi Pico MicroPython and Thonny IDE Installation.

Raspberry Pi Pico Led examples.

Raspberry Pi Pico Digital Input.

Raspberry Pi Pico Oled Display Module SSD1306

Raspberry Pi Pico ADC Analog Sensor

Raspberry Pi Pico Ultrasonic Sensor.

Raspberry Pi Pico PIR Motion Sensor.

Raspberry Pi Pico LDR Sensor, Day & Night Detection.


Amazon Links:

Raspberry Pi Pico

SSD1306 Oled Display Module

Other Tools and Components:

Top Arduino Sensors:

Super Starter kit for Beginners

Digital Oscilloscopes

Variable Supply

Digital Multimeter

Soldering iron kits

PCB small portable drill machines

*Please Note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!

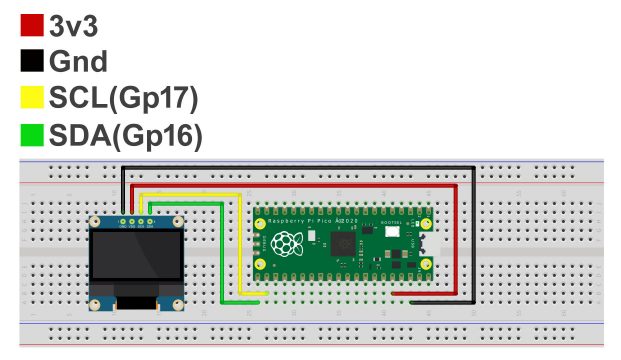

Raspberry Pi Pico Temperature Sensor Circuit Diagram:

Raspberry Pi Pico

For this project, you only need to interface the Oled display module with the Raspberry Pi Pico. The connections I have already explained in example5.

Now, you might be thinking to which pin this onboard temperature sensor is connected? This onboard temperature sensor is connected to one of the ADCs or Analog-to-Digital Converters. The temperature sensor does not have a physical pin in the board but is accessed as ADC4. This onboard temperature sensor works by delivering a voltage to the ADC4 pin that is proportional to the temperature. If you check the Raspberry Pi Pico datasheet you will find that a temperature of 27 degrees Celsius delivers a voltage of 0.706 volts.

In the RP2040 Pico Board, the ADC pins support 12-bits, which means that the value can go from 0 to 4095. But the MicroPython code can scale the ADC values to a 16-bit range. So we effectively get the range from 0 to 65535. The microcontroller works at 3.3 V, which means that an ADC pin will return a value of 65535 when 3.3 V is applied to it or 0 when there is no voltage. We can obtain all the in-between values when the voltage applied to the pin is between 0 and 3.3 V. Let’s take a look at the code and you will get the idea.


Raspberry Pi Pico Temperature Sensor Programming:

from machine import Pin, I2C

from ssd1306 import SSD1306_I2C

from oled import Write, GFX, SSD1306_I2C

from oled.fonts import ubuntu_mono_15, ubuntu_mono_20

import utime




TempSensor = machine.ADC(4)

WIDTH  = 128

HEIGHT = 64

i2c = I2C(0, scl=Pin(17), sda=Pin(16), freq=200000)

conversion_factor = 3.3 / 65535

oled = SSD1306_I2C(WIDTH, HEIGHT, i2c)

while True:

    data = TempSensor.read_u16() * conversion_factor

    temperature = 27-(data-0.706)/0.001721

    oled.fill(0)

    write20 = Write(oled, ubuntu_mono_20)

    write20.text("Temperature: ", 0, 0)

    write20.text(str(round(temperature,1)),0,20)

    write20.text("*C",44,20)

    oled.show()

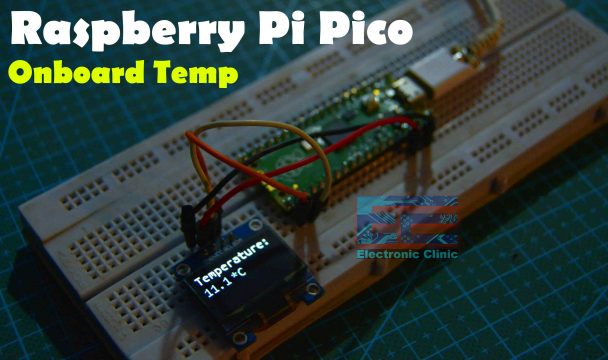

Now, you should be able to understand why am I using ADC4 and why am I dividing 3.3 by 65535. As I explained earlier, if you check the Raspberry Pi Pico datasheet you will find that a temperature of 27 degrees Celsius delivers a voltage of 0.706 volts, so that’s why you can see these numbers and then this value is used to convert the temperature reading into Celsius. So, that’s all about the code and now let’s run this code.

Raspberry Pi Pico

Next article, Raspberry Pi Pico Ultrasonic Sensor

Watch Video:

Engr Fahad

My name is Shahzada Fahad and I am an Electrical Engineer. I have been doing Job in UAE as a site engineer in an Electrical Construction Company. Currently, I am running my own YouTube channel "Electronic Clinic", and managing this Website. My Hobbies are * Watching Movies * Music * Martial Arts * Photography * Travelling * Make Sketches and so on...

2 Comments

  1. Hi ENGr Fahad; The program worked for 2 days then battery drained. I downloaded program to pico and got error. So while uploading there was a “rp2-pico-20220618-v1.19.1.uf2” update so I installed it. Now I get error for OLED )shown below. I deleted the OLED and SSD1306 in the Manage Package- reinstalled them again. I get the same errors. Not sure what is going on in the code.
    Can you tell me if I ned to change something in the code to OLED and SSD1306?
    Thanks; MC

    Traceback (most recent call last):
    File “”, line 13, in
    File “/lib/oled/ssd1306.py”, line 127, in init
    File “/lib/oled/ssd1306.py”, line 47, in init
    File “/lib/oled/ssd1306.py”, line 72, in init_display
    File “/lib/oled/ssd1306.py”, line 132, in write_cmd
    OSError: [Errno 5] EIO

    1. If you are using thonny go in options and choose MiroPython (RP2040) in Interpreter. Next open Manage packages and install micropython_oled and micropython_ssd1306
